kplay (short for “kafka-playground”) lets you inspect messages in a Kafka topic in a simple and deliberate manner. Using it, you can pull one or more messages on demand, peruse through them in a list, and, if needed, persist them to your local filesystem.

tui

web

Install

homebrew:

brew install dhth/tap/kplay

go:

go install github.com/dhth/kplay@latest

Or get the binaries directly from a release. Read more about verifying the authenticity of released artifacts here.

⚡️ Usage

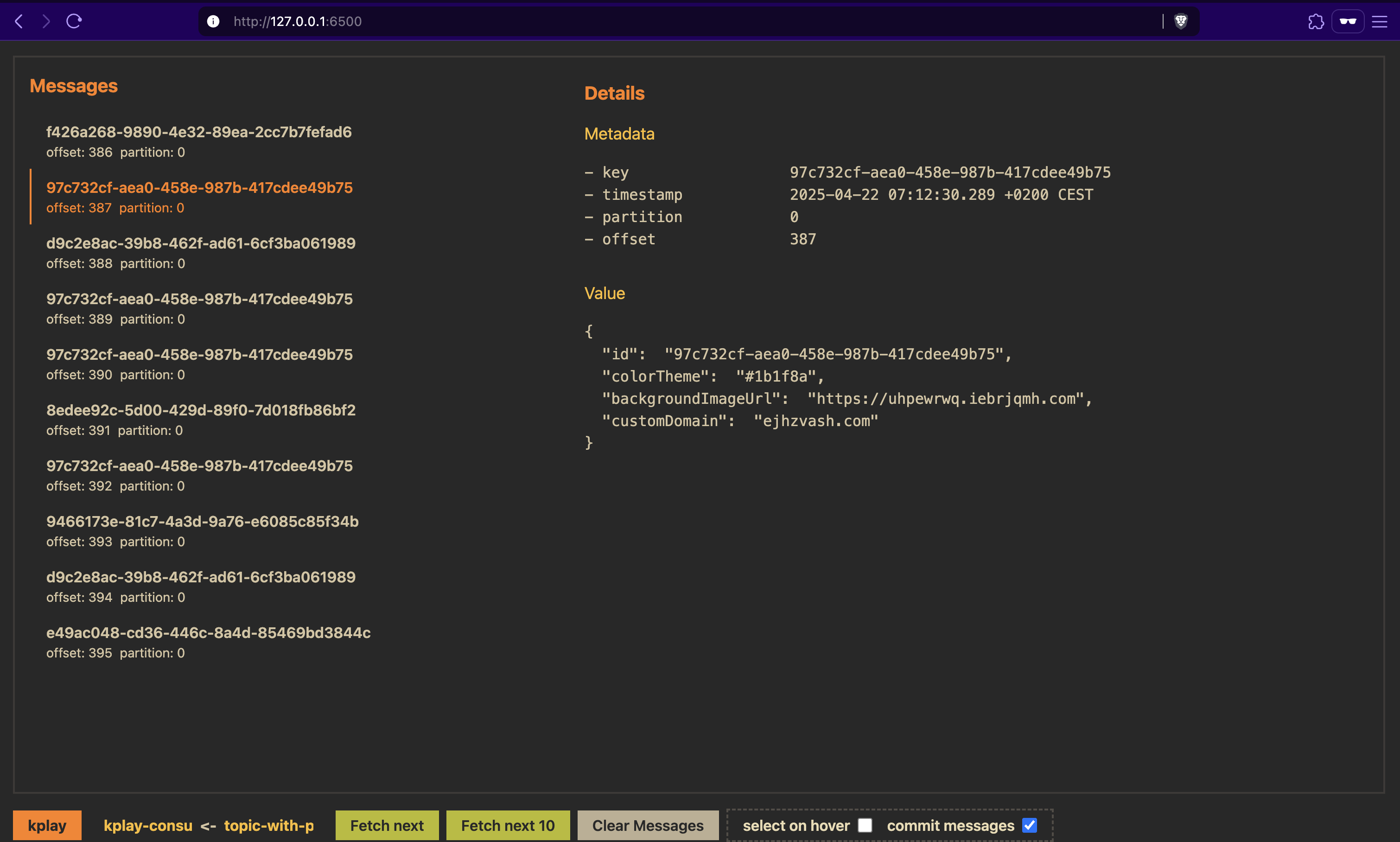

kplay can display messages via two interfaces: a TUI or a webpage

$ kplay tui -h
open kplay's TUI

Usage:
  kplay tui <PROFILE> [flags]

Flags:
  -C, --commit-messages         whether to start the TUI with the setting "commit messages" ON (default true)
  -c, --config-path string      location of kplay's config file (default "/Users/dhruvthakur/Library/Application Support/kplay/kplay.yml")
  -g, --consumer-group string   consumer group to use (overrides the one in kplay's config file)
      --debug                   whether to only display config picked up by kplay without running it
  -h, --help                    help for tui
  -p, --persist-messages        whether to start the TUI with the setting "persist messages" ON
  -s, --skip-messages           whether to start the TUI with the setting "skip messages" ON

tui

$ kplay serve -h
open kplay's web interface

Usage:
  kplay serve <PROFILE> [flags]

Flags:
  -C, --commit-messages         whether to start the web interface with the setting "commit messages" ON (default true)
  -c, --config-path string      location of kplay's config file (default "/Users/dhruvthakur/Library/Application Support/kplay/kplay.yml")
  -g, --consumer-group string   consumer group to use (overrides the one in kplay's config file)
      --debug                   whether to only display config picked up by kplay without running it
  -h, --help                    help for serve
  -o, --open                    whether to open web interface in browser automatically
  -S, --select-on-hover         whether to start the web interface with the setting "select on hover" ON

tui

🔧 Configuration

kplay’s configuration file looks like the following:

profiles:
  - name: json-encoded
    authentication: none
    encodingFormat: json
    brokers:
      - 127.0.0.1:9092
    topic: kplay-test-1
    consumerGroup: kplay-consumer-group-1

  - name: proto-encoded
    authentication: aws_msk_iam
    encodingFormat: protobuf
    protoConfig:
      descriptorSetFile: path/to/descriptor/set/file.pb
      descriptorName: sample.DescriptorName
    brokers:
      - 127.0.0.1:9092
    topic: kplay-test-2
    consumerGroup: kplay-consumer-group-1

  - name: raw
    authentication: none
    encodingFormat: raw
    brokers:
      - 127.0.0.1:9092
    topic: kplay-test-3
    consumerGroup: kplay-consumer-group-1

🔤 Message Encoding

kplay supports parsing messages that are encoded in two data formats: JSON and protobuf. It also supports parsing raw data (using the encodingFormat “raw”).

Parsing protobuf encoded messages

For parsing protobuf encoded messages, kplay needs to be provided with a FileDescriptorSet and a descriptor name. Consider a .proto file like the following:

// application_state.proto
syntax = "proto3";

package sample;

message ApplicationState {
  string id = 1; // required
  string colorTheme = 2;
  string backgroundImageUrl = 3;
  string customDomain = 4;
}

A FileDescriptorSet can be generated for this file using the protocol buffer compiler.

protoc application_state.proto \
    --descriptor_set_out=application_state.pb \
    --include_imports

This descriptor set file can then be used in kplay’s config file, alongside the descriptorName “sample.ApplicationState”.

Read more about self describing protocol messages here.

🔑 Authentication

By default, kplay operates under the assumption that brokers do not authenticate requests. Besides this, it supports AWS IAM authentication.

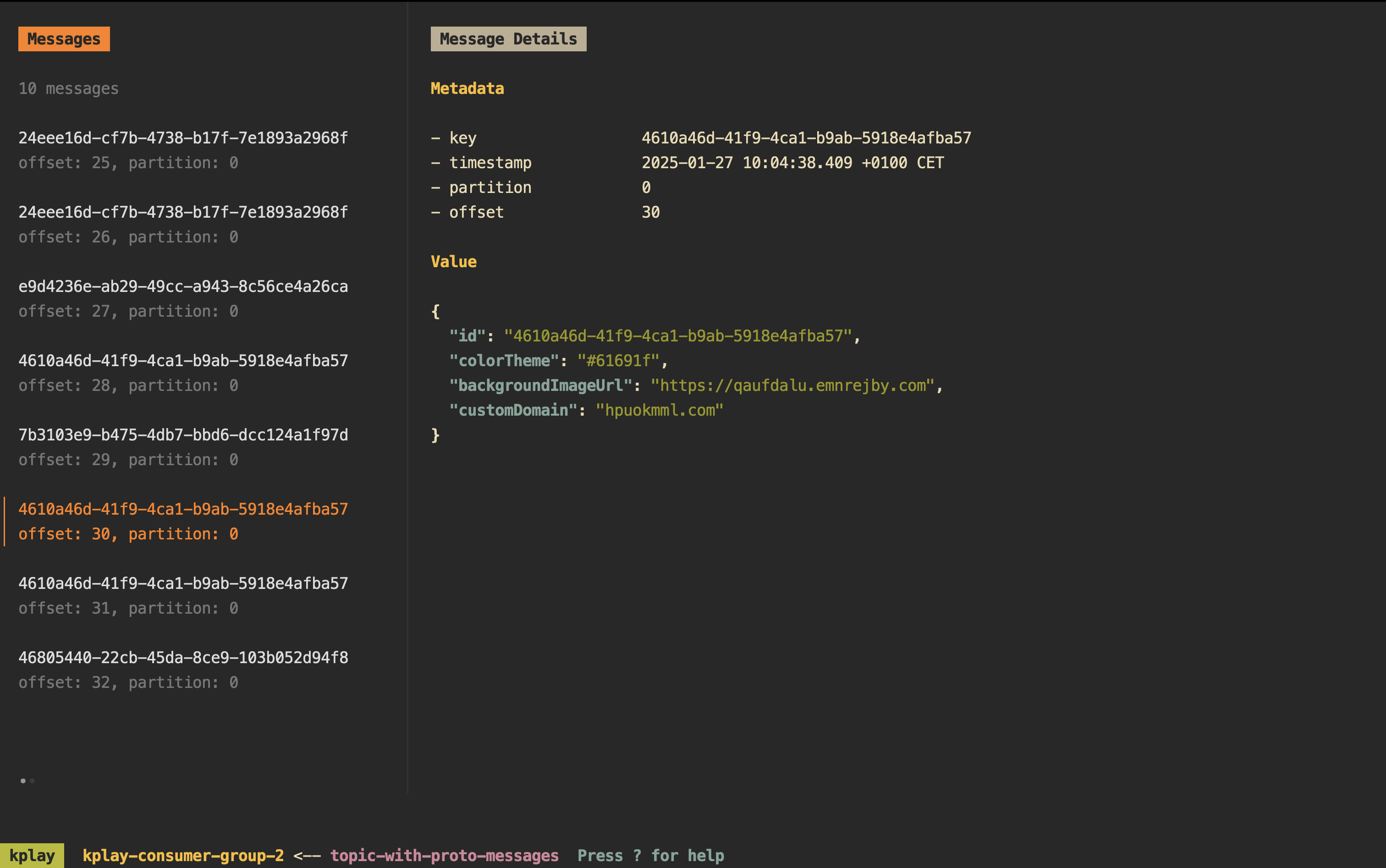

⌨️ TUI Keymaps

General

Keymap	Description
`?`	Show help view
`q`	Go back/quit
`Q`	Quit from anywhere

Message List and Details View

Keymap	Description
`<tab>`/`<shift-tab>`	Switch focus between panes
`j`/`<Down>`	Move cursor/details pane down
`k`/`<Up>`	Move cursor/details pane up
`n`	Fetch the next message from the topic
`N`	Fetch the next 10 messages from the topic
`}`	Fetch the next 100 messages from the topic
`s`	Toggle skipping mode (if ON, kplay will consume messages, but not populate its internal list, effectively skipping over them)
`p`	Toggle persist mode (if ON, kplay will start persisting messages at the location messages//partition-/offset-.txt)
`c`	Toggle commit mode (if OFF, kplay will consume messages without committing them)
`y`	Copy message details to clipboard
`[`	Move to previous item in list
`]`	Move to next item in list

🔐 Verifying release artifacts

In case you get the kplay binary directly from a release, you may want to verify its authenticity. Checksums are applied to all released artifacts, and the resulting checksum file is signed using cosign.

Steps to verify (replace A.B.C in the commands listed below with the version you want):

Download the following files from the release:
- kplay_A.B.C_checksums.txt
- kplay_A.B.C_checksums.txt.pem
- kplay_A.B.C_checksums.txt.sig

Verify the signature:

cosign verify-blob kplay_A.B.C_checksums.txt \
    --certificate kplay_A.B.C_checksums.txt.pem \
    --signature kplay_A.B.C_checksums.txt.sig \
    --certificate-identity-regexp 'https://github\.com/dhth/kplay/\.github/workflows/.+' \
    --certificate-oidc-issuer "https://token.actions.githubusercontent.com"

Download the compressed archive you want, and validate its checksum:

curl -sSLO https://github.com/dhth/kplay/releases/download/vA.B.C/kplay_A.B.C_linux_amd64.tar.gz
sha256sum --ignore-missing -c kplay_A.B.C_checksums.txt

If checksum validation goes through, uncompress the archive:

tar -xzf kplay_A.B.C_linux_amd64.tar.gz
./kplay
# profit!

Acknowledgements

kplay is built using the awesome TUI framework bubbletea.

Changelog

The format is based on Keep a Changelog, and this project adheres to Semantic Versioning.

v2.0.0 - Apr 23, 2025

Added

Add web interface

v1.1.0 - Jan 27, 2025

Added

Allow consuming messages without committing them
Allow persisting a single message

v1.0.0 - Jan 26, 2025

Added

Allow dynamic parsing of protobuf encoded messages
Allow setting up of “profiles” for various Kafka topics, each with its own details related to brokers, message encoding, authentication, etc.
Allow authentication via AWS MSK IAM
Show topic and consumer group info in the footer

Changed

Message metadata and value are now shown in a single viewport
The command line interface; most of the configuration is now taken from the config file

Removed

Keymaps to maximize message metadata or value viewport

v0.1.0 - Mar 6, 2024

Added

A TUI that allows pulling messages from a kafka topic on demand, and viewing their metadata and value
Allow persisting messages to the local filesystem
Allow skipping messages
